Medium Sized Vegetable Potato Chips Cutter Machine for Home Use CE Approval

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Henan Huafood Machinery Technology Co., LTD
[China]

Address
China Location No.17 gongye Road xingyang District,Zhengzhou Henan Zhengzhou Henan
Phone
86-178-37122303
Contact name
Rose Jia

Quick Information

  • Brand Name: HDF
  • Place of Origin: China
  • Model Number : HDF-S01
  • Processing : Baking Machine
  • Processing Types : Fruit & Vegetable
  • :

Description

Multifunction Electric Vegetable Slicer Potato Chips Cutter Machine for Home Use

Product description:


The Potato Chips Cutter Machine is suitable for slicing of medium-sized, long cylindrical materials (such as yam, lotus root, cassava, sweet potato (sweet potato), radish) with good cut surface quality, thin and uniform size, and cut tissue. Fresh, does not damage fibrous tissue.At the same time, the mushroom slicer machine has high slicing efficiency, convenient operation, low energy consumption, health, safety and high efficiency, and is an ideal equipment for agricultural product processing. It mainly consists of a frame, a rotating cutter head, a transmission part, a motor, a discharge port, etc.


Operating procedures:


1. Before starting the machine, you must check whether the protective equipment and power supply are in good condition.Whether there are hard objects and foreign objects on the belt.
2. After starting, it must be observed for 12 minutes, and it can be used after it is running normally.
3. When the machine is running, it is strictly forbidden to put your hand into the search or under the vertical knife to ensure personal safety.
4. The amount of food should be evenly distributed to prevent clogging. If the dish is found to be blocked.It must be stopped before it can be cleaned.
5. When cleaning up, when cleaning up the residue, the power must be cut off.Into the electrical equipment, so as to avoid water ingress and moisture, leakage occurs.
6. After the end of each day, the mechanical transmission and sliding parts must be cleared and add oil once.
7. It is strictly forbidden to dismantle the protective fence and protective cover without authorization.Bad or mechanical failure should be reported to the repair department in time.


Application:


The potato chips slicing machine is used for slicing root based vegetables and fruits into uniform round slices. Such as cassava,cucumber,sweet potato,turnip,carrot,lotus root,eggplant,onion,potato,tomato apple,lemon,kiwifruit,banana etc.


The multi-function cutting machine can cut long strips of onions, garlic, scallions, celery, vegetables, Chinese cabbage, fish, dried beans, spinach, banana slices, melons and so on. Another change of the cutter disc can be used to cut roots and vegetables, such as bamboo shoots, radishes, potatoes and other shredded slices. Suitable for central canteens and vegetable processing industry.


Technical Parameters:


Product namePotato chips cutting machine
Capacity300-1000kg/h
Power220v/1.5kw
Number of blades6
Material304 Stainless steel
Dimension1000*900*580mm
Weight75kg



Installation and commissioning:


Place the vegetable slicer machine on a dry, ventilated level surface before use to ensure that the machine works smoothly and reliably. Check all parts before use, whether the fasteners are loose during transportation, whether the switch and power cord are damaged due to transportation, and whether there is foreign matter in the hopper or the box. Check that the power supply voltage matches the voltage used by the unit. Extend the power cord, ground the yellow-green core with the grounding symbol, and connect the remaining three cores (two for the single-phase motor) to the open load switch (the knife switch). On the lead terminal. Open the front door before work, and use the dial to check if there is any impact on the tool. If it is, loosen the tightening bolt on the turntable, move the turn slightly outward, and then tighten the tightening bolt. Close the open load switch, start the open button, depending on whether the cutter is running in the correct direction, observe the counterclockwise rotation from the inlet port to be correct, otherwise adjust the power cord, wait until the cutter runs in the correct direction and then test the no-load, no abnormalities in each part. You can test the machine.



Picture:




Price

  • Delivery Port : SHANGHAI

Packaging & Delivery

  • Packing :standardwoodenpacking
  • Delivery Lead Time : 7 days for ready goods
  • Supply Ability : 20 Sets per Month

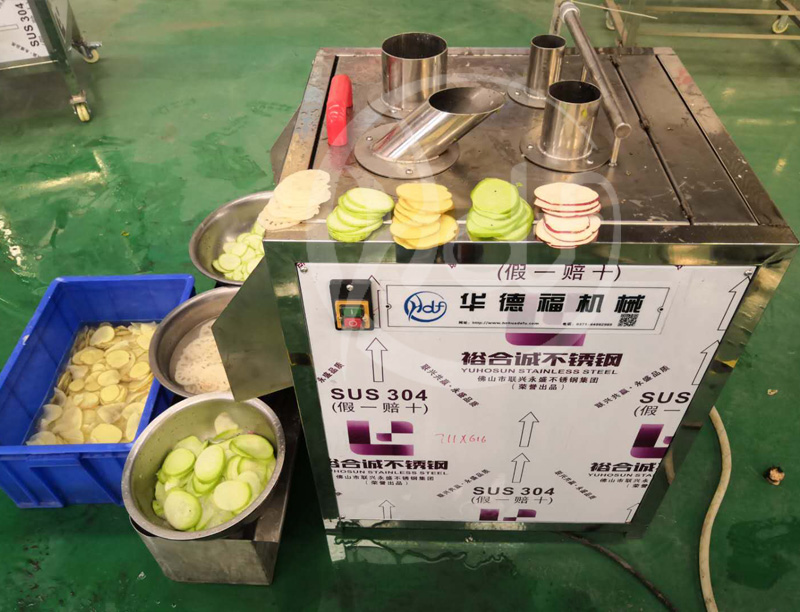

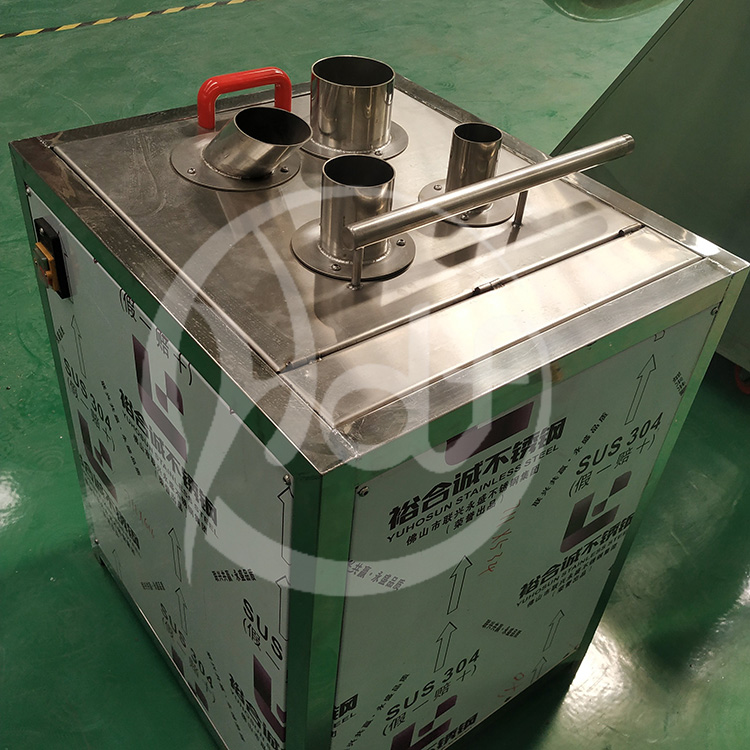

Product Image

  • Medium Sized Vegetable Potato Chips Cutter Machine for Home Use CE Approval image
